Mirka dust extractors and work stations


Mirka® dust extractor DE 1230 L

Dust extractor

DE 1230 L PC 230v kit (push and clean filter.)       Code: KIT1703ALMUL

DE 1230 M AFC 230v kit (automatic filter clean.) Code: KIT1704ALMUL

When used with the Mirka Abranet Abrasive range and the Mirka Dust Free Sanders or Hand Pads, the Mirka Dust Extraction System is simply the most efficient extraction system available.


This professional 230v Dust Extractor has a high performance motor and turbine, which creates 250 mbar vacuum and 4,500 l/min air flow. The AutoStart function increases the lifetime of the motor,  reduces noise and saves energy. It has a flat top with space for storage and large wheels for better manoeuvrability. (Mirka tool cases can be attached with a simple accessory.)


Depending on the model the filter cleaning is either  Push and Clean or Automatic.


A fleece dust bag and a 4m hose is included. Fitted with hose and cable storage hooks for easy transportation and tidiness.

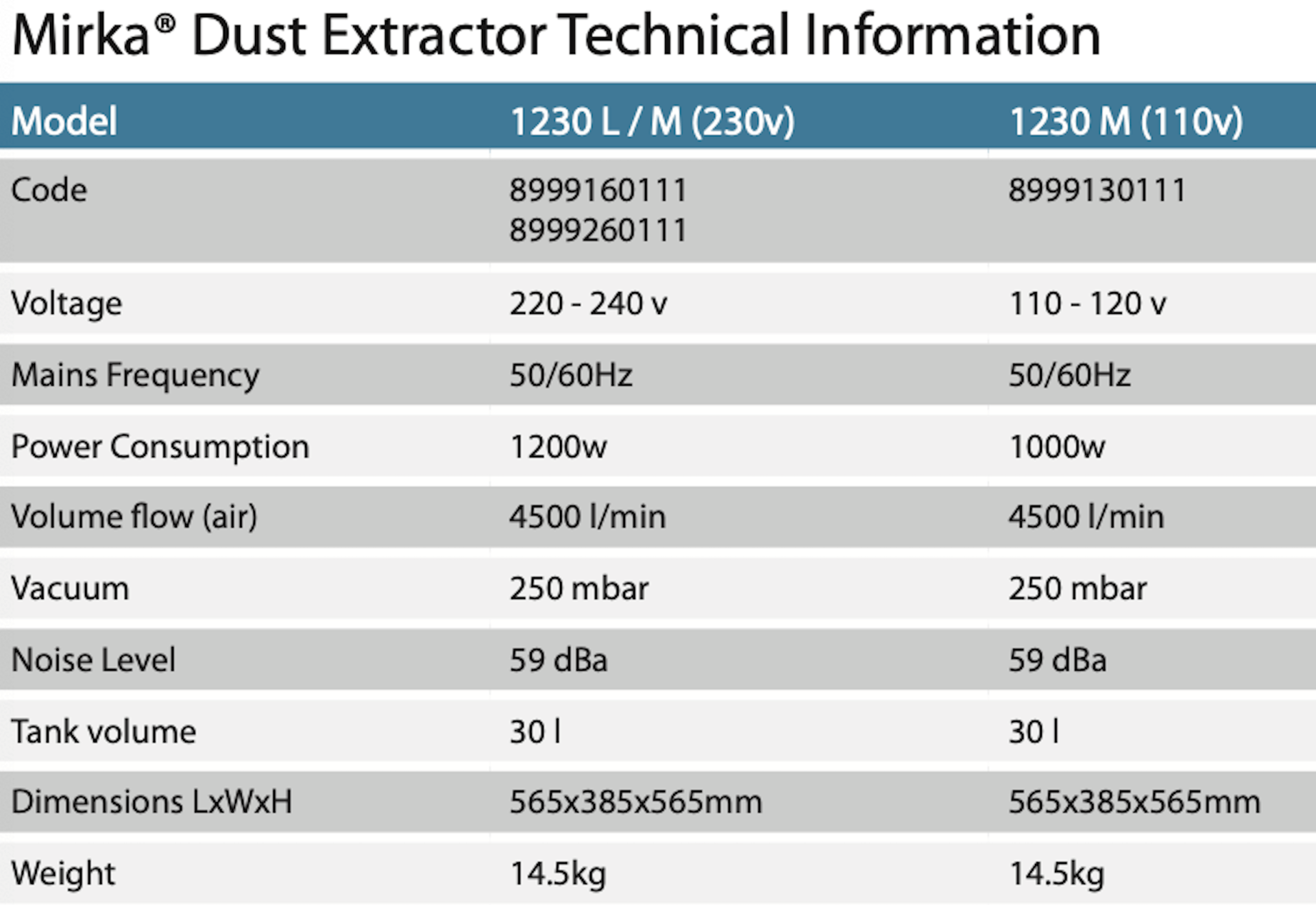

Dimensions: 565 x 385 x 565mm. Weight 14.5kg. Power input 1,200w. Noise 60.0db.

DE 1230 Extractor, optional accessories,

modular Work Station

  • work stations

    Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

                     Accessories for the Mirka 1230 dust extractor


                                Code

Mirka® LEROS tool holder.                                                  9190150011

Compact shelf for your Mirka tool case and

abrasives. Hook system for machines and

hose storage.


Tool and abrasive case.                                                            MIN6535011

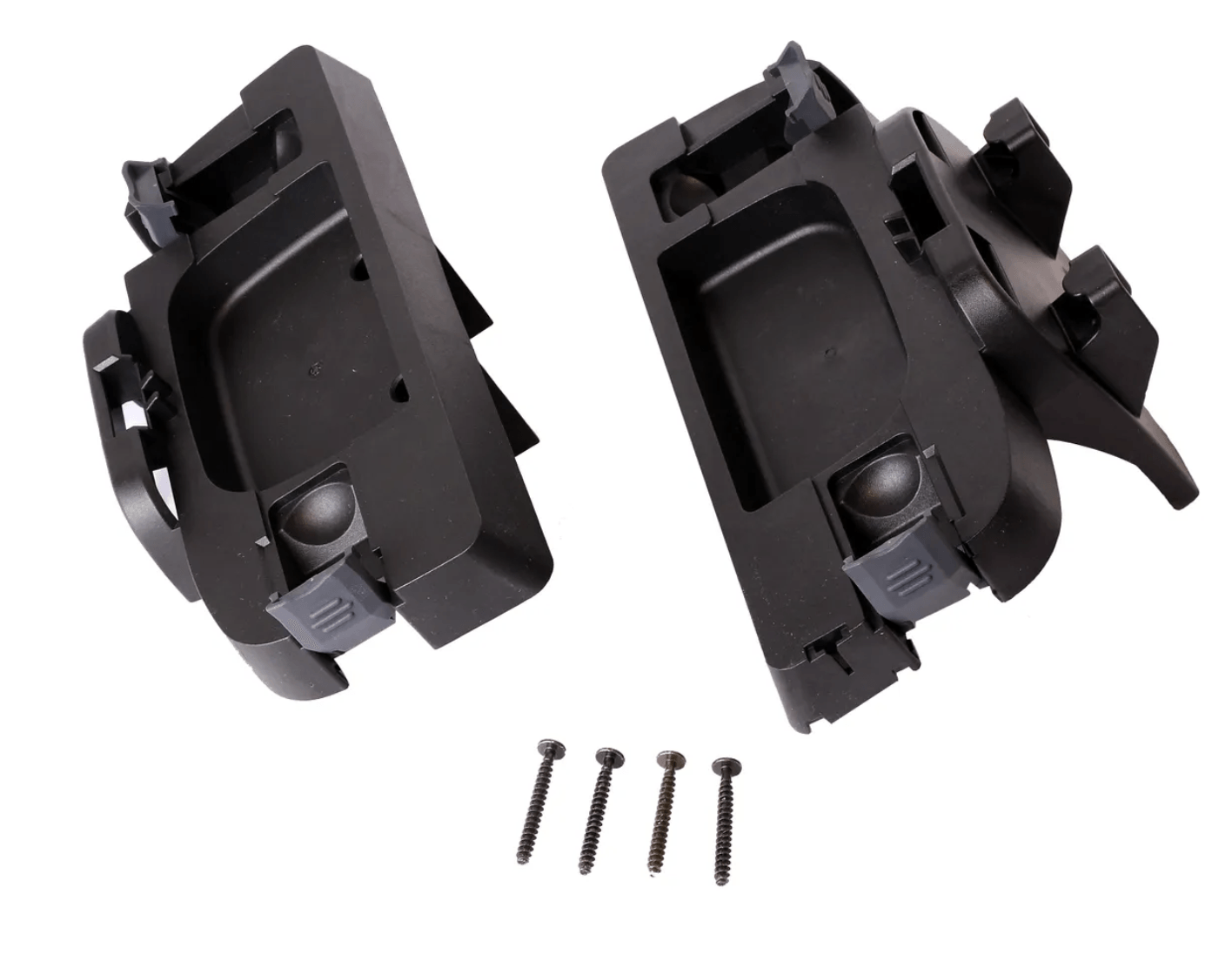

Case fastening accessory                                                         8999110411

Secures your Mirka tool case directly to your

extractor.

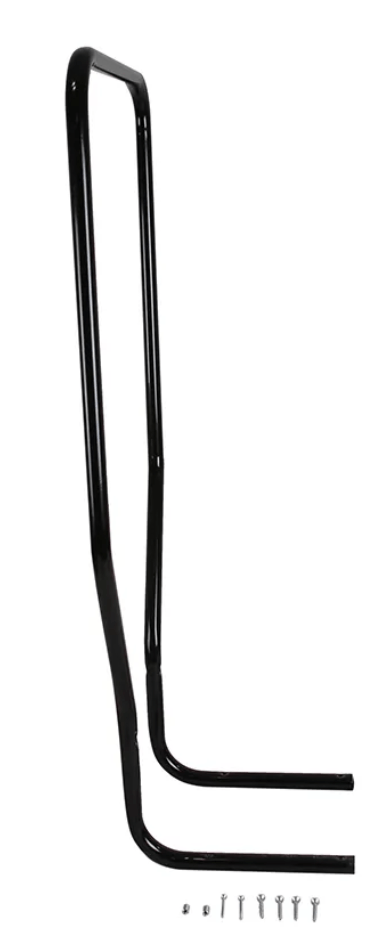

Extended handle for dust extractor                                     8999299111

Tall loop handle gives additional height for

increased comfort and manoeuvrability.

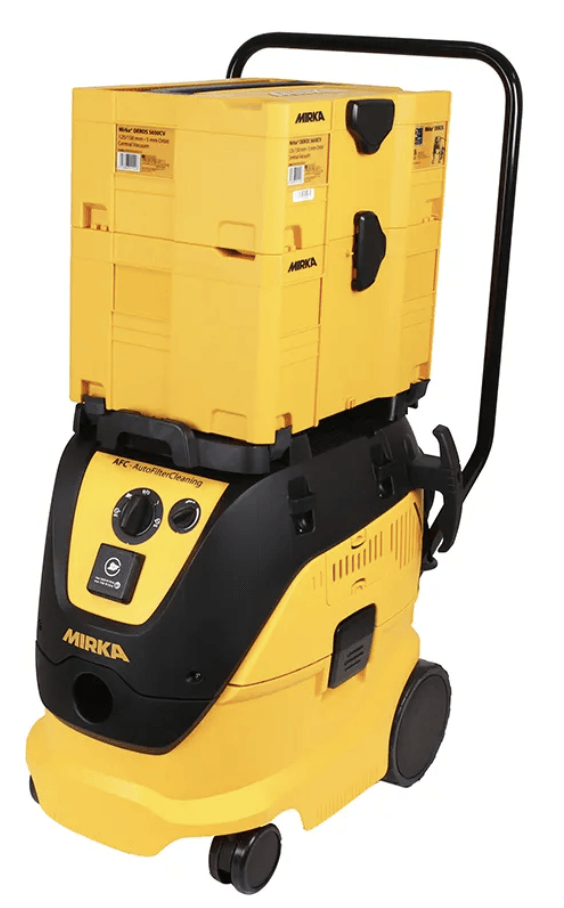

                    Picture of Extractor once customised with


                    tool boxes and handle

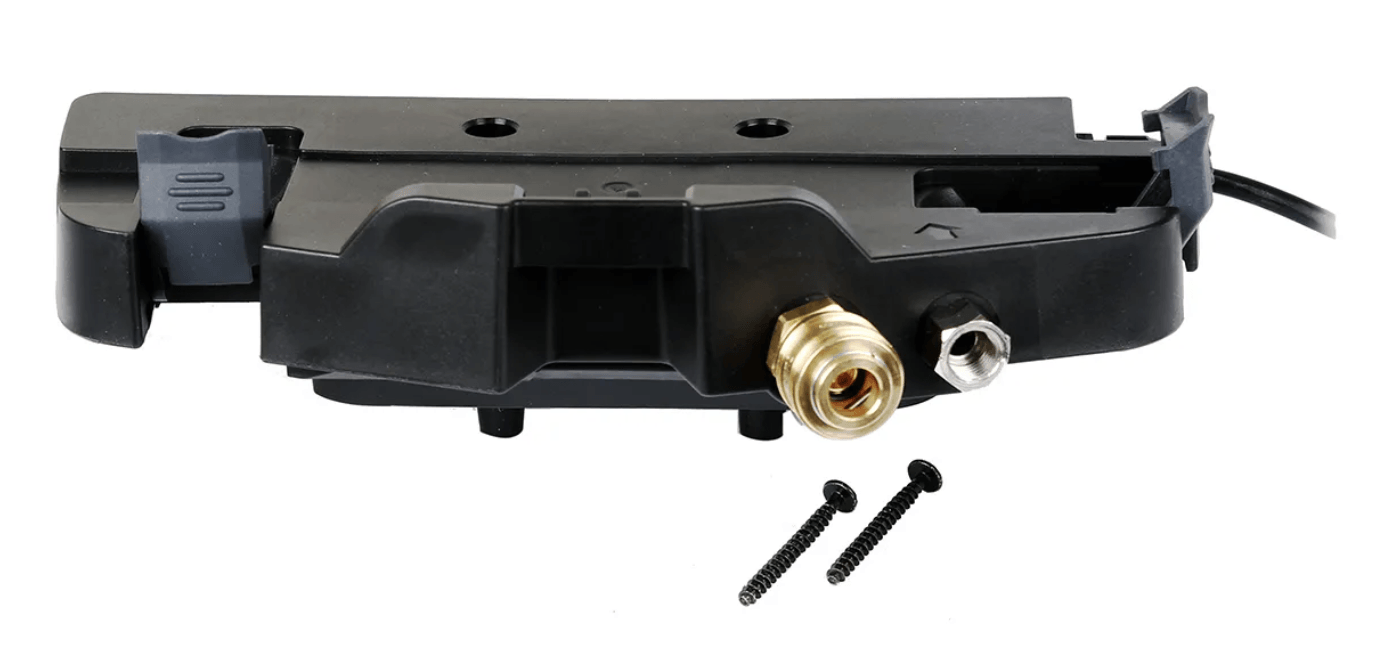

Pneumatic box                                                                           8999101011

When using Pneumatic Tools save energy with

the Pneumatic Box which engages the dust

extractor only when the tool is operating.

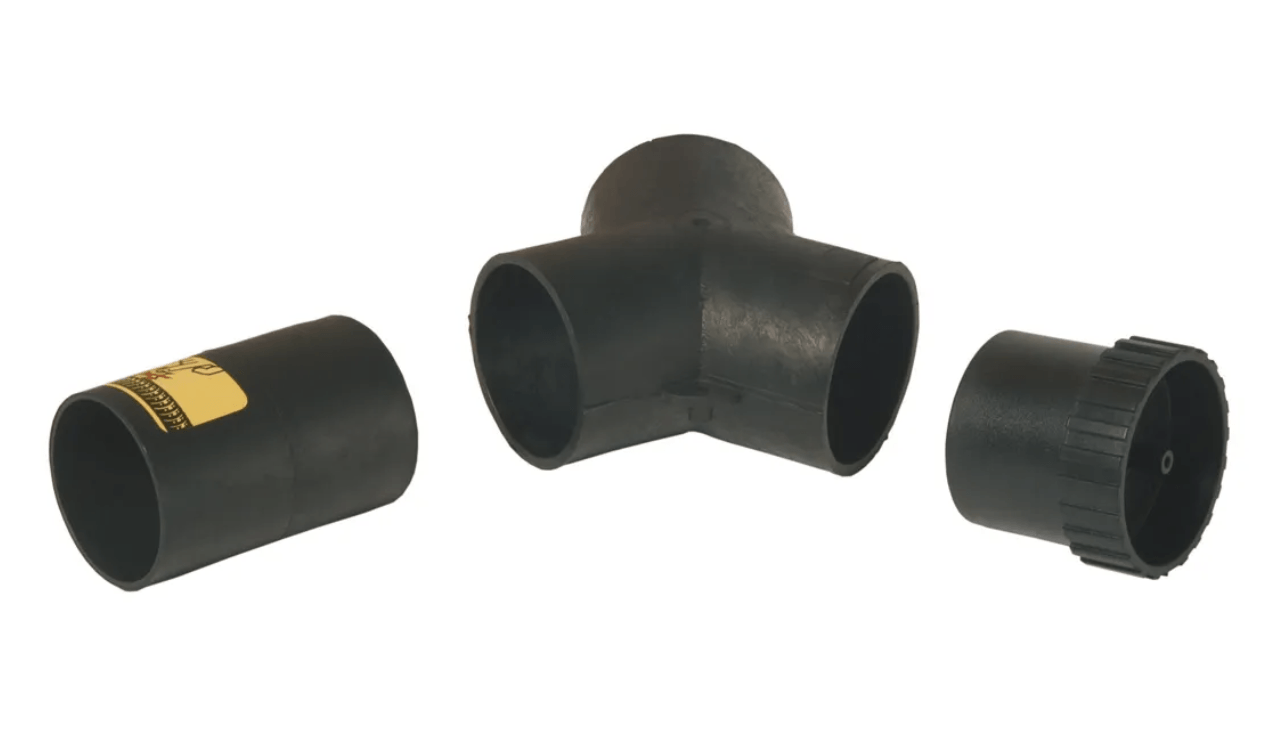

Dual vacuum kit                                                                                                                                                                                                                          8992510311

Operate 2 sanders simultaneously.

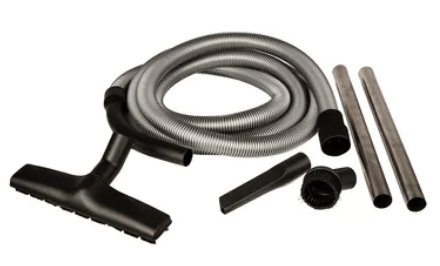

Vacuum clean up kit                                                                8999799111

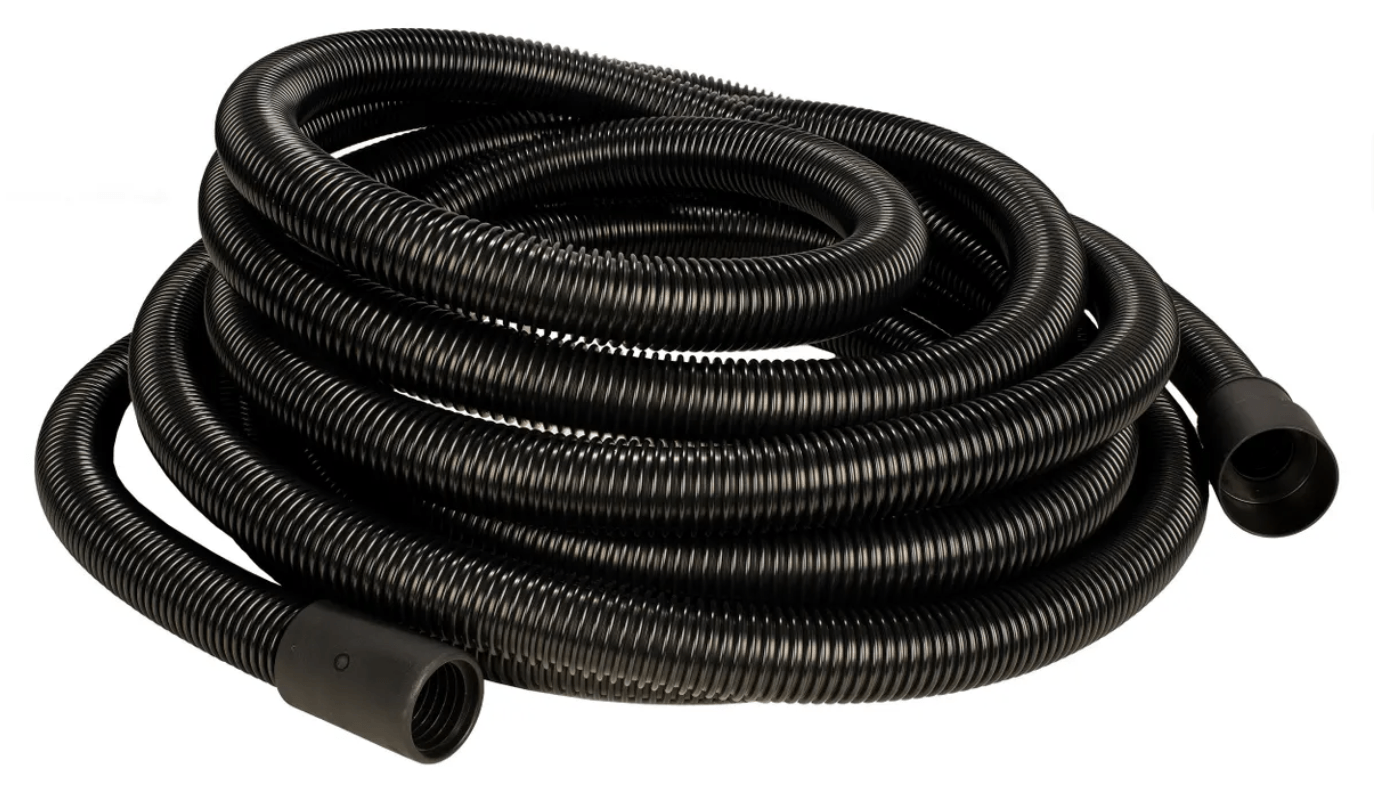

Extra long hose                                                                          MIN6519711

10m x 27mm including connector

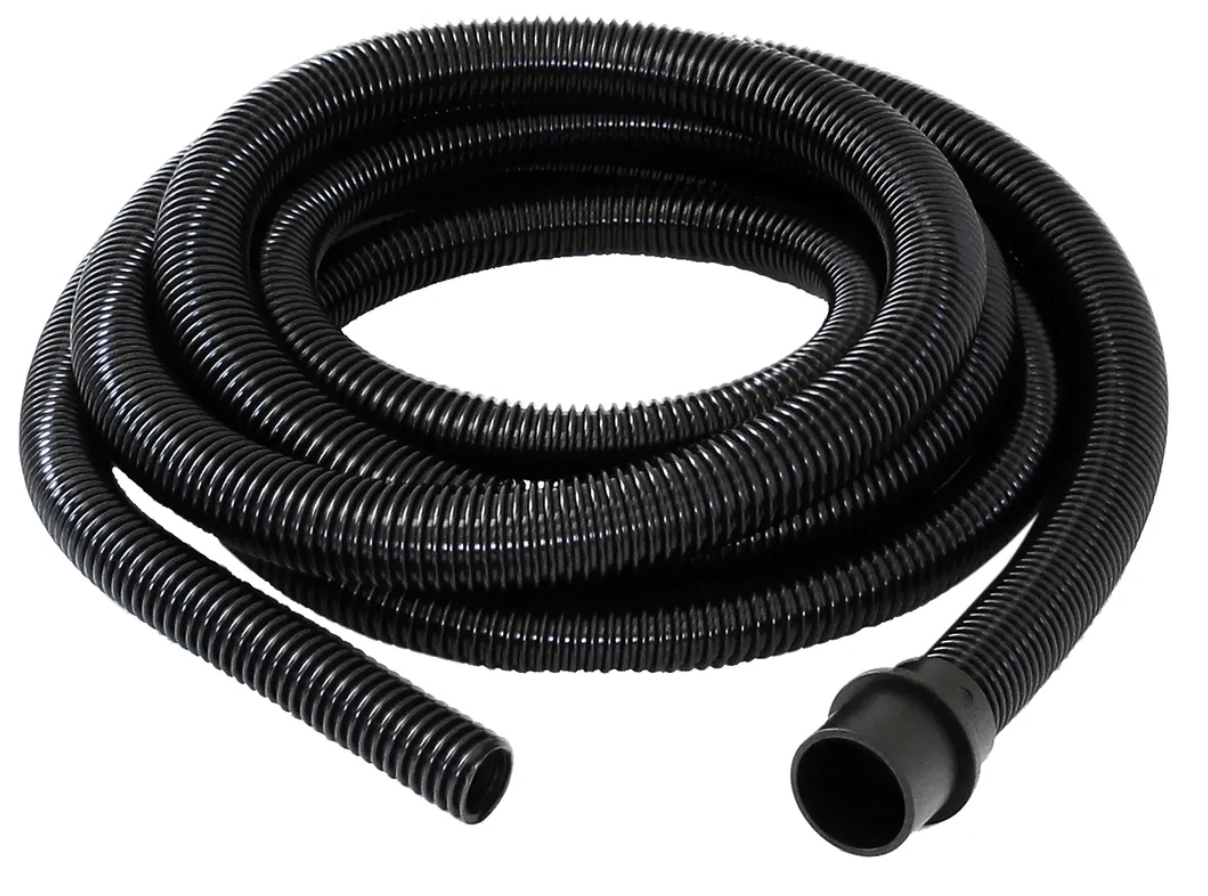

Extension hose for hand sanding blocks                           8391112011

4m x 20mm hose supplied with connector




                                                                           Modular work stations

modular trolley

Maximise production efficiencies.

With the Mirka modular trolley you can keep the working area organised and clean for an efficient and professional and workflow. Thanks to its customisable modular design, it is easy to accessorise to suit your workshop and production requirements, bringing all the necessary tools and supplies within easy reach for efficient and ergonomic accessibility.


Build your own work station.

Start with one of the two base models, Basic with shelves or Basic + with draws and adapt with fixtures to suit your specific production needs to keep  everything close at hand and in it's place. As production requirements change modify your work station accordingly. The modular trolley grows and develops together with your workflow. (See pictures and list of fixtures below.)

                              LIST OF FIXTURES

         BASE MODELS                                                                 Code

         Modular trolley basic, with shelves.                    KITMODTROLL1

         Modular trolley basic plus, with draws.             KITMODTROLL2


         Adapt as required:                                                           Code

  • Midsection with electric connections                        9194012511
  • Aerosol holder                                                                 9194011311
  • Spray gun holder                                                             9194011411
  • Waste bag holder                                                             9194010611
  • Tool Wall                                                                            9194010111
  • Hook, Round holes short, Yellow 3/pack                  9194010411
  • Hook, Square holes long, Yellow 3/pack                   9194010311
  • Tool wall Shelf for abrasives. 2 / pack                        9194010211
  • Tool wall box Shelf, 3 sided                                           9194010511
